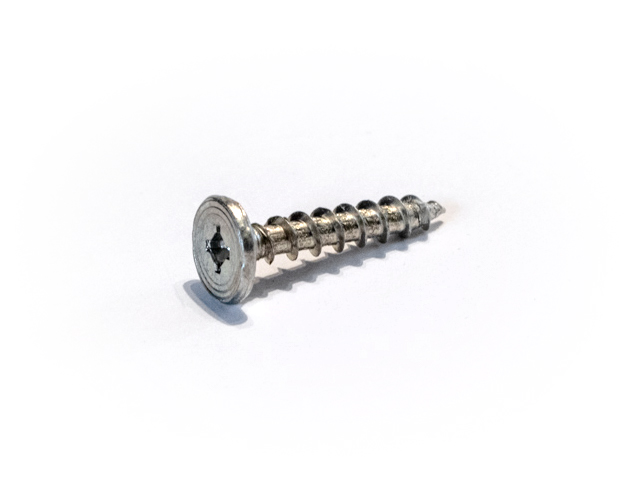

Material #: 1545904
Specifications:
- Diameter: #12 (5.38mm)
- Threads Per Inch: 8
- Head Style: Wafer
- Drive: #2 square
- Drill Point: Sharp point
- Thread Major Dia: 0.212″ (5.38mm)
- Thread Minor Dia: 0.130″ (3.3mm)
Metal panel to wood girt or purlin
Benefits:
- High Hex Washer Head and Sharp Twin Lead Thread design pierces and threads multiple laps of high tensile light gauge steel up to 24 gauge
Highest pullout values in the industry - Available powder coated in over 100 colours to match painted panels
- Available powder coating warranty to match long life painted panels
- Patented Flow Cone Grey EPDM Washers (Patent# 4292876)
Applications:
- Roof or wall panel to wood frame
- Panel over insulation to wood framing
- Stitching panels
- Ideal for fastening residential steel roof panels
Metal Panel to Metal Girt or Purlin, Stitching, and Structural Applications
Benefits:
- Master Drillers with High Hex Washer heads are available with pilot points that prevent jacking when drilling multiple sheets
- Master Seal Washers are one piece, galvanized steel, aluminum or stainless steel vulcanized to an EPDM sealing washer – no leaks
- Flange Head design provides maximum pullover resistance
Applications:
- Panel over insulation to a steel frame
- HVAC assembly
- Stitching roof, wall, decking or fascia panels
- Metal decking
- Liner panels
- Wood fascia to steel
- Z bar to structure
Metal panel to wood girt or purlin
Benefits:
- High Hex Washer Head and Sharp Twin Lead Thread design pierces and threads multiple laps of high tensile light gauge steel up to 24 gauge
- Highest pullout values in the industry
- Available powder coated in over 100 colours to match painted panels
- Available powder coating warranty to match long life painted panels
- Patented Flow Cone Grey EPDM Washers (Patent# 4292876)
Applications:
- Roof or wall panel to wood frame
- Panel over insulation to wood framing
- Stitching panels
- Ideal for fastening residential steel roof panels
Metal panel to wood girt or purlin
Benefits:
- High Hex Washer Head and Sharp Twin Lead Thread design pierces and threads multiple laps of high tensile light gauge steel up to 24 gauge
- Highest pullout values in the industry
- Available powder coated in over 100 colours to match painted panels
- Available powder coating warranty to match long life painted panels
- Patented Flow Cone Grey EPDM Washers (Patent# 4292876)
Applications:
- Roof or wall panel to wood frame
- Panel over insulation to wood framing
- Stitching panels
- Ideal for fastening residential steel roof panels
LASTOBOND PRO HT-N is a 40-mil-thick, self-adhesive membrane composed of elastomeric bitumen and a trilaminate woven polyethylene. This non-slip, flexible, self-sealing roof underlayment can be used for any type of roof covering, in outdoor temperatures ranging from -40 °C to 90 °C (-40 °F to 194 °F).
Benefits
- Anti-slip surface
- Self-sealing around nails and screws
- Clean, fast and easy installation
- UV resistant (90 days exposure)
- High tensile strength
- Effective and hard-wearing
- Requires no special tools
- Consistent thickness
FEATURES:
Flexible Base Design
Seals tightly with sealant and almost any type of fastener, the flexible base is virtually compatible with any roofing material — metal, plastic, asphalt, tile, rubber membrane, and more.
Uniform Plumbing Code (UPC) Listed
Master Flash was used to create a new engineering standard for profiled roofing by the International Association of Plumbing and Mechanical Officials (for the Uniform Plumbing Code).
Resilient Design
Master Flash performance is unaffected by:
- Ice/snow
- Hailstones
- Vibration
- Expansion/Contraction
Environment Control
Master Flash provides a permanent seal that controls gaseous or liquid environments to eliminate leakage and odour contamination.
Corrosion-Resistant Base
Master Flash base is made of heavy-duty aluminum alloy for flexibility and corrosion resistance.
Roof Pitch-Adaptability
The stepped-cone design makes Master Flash easily adaptable to most roof pitches.
APPLICATIONS:
- Plumbing, heating/air conditioning vents and equipment
- Expansion/ContractionElectrical service entrances
- Solar collection pipes
- Grain augers
- TV aerials
- Masts, vents or pipes through decks or bulkheads
- Lighting conductors
- Pest control
FEATURES:
Flexible Base Design
Seals tightly with sealant and almost any type of fastener, the flexible base is virtually compatible with any roofing material — metal, plastic, asphalt, tile, rubber membrane, and more.
Uniform Plumbing Code (UPC) Listed
Master Flash was used to create a new engineering standard for profiled roofing by the International Association of Plumbing and Mechanical Officials (for the Uniform Plumbing Code).
Resilient Design
Master Flash performance is unaffected by:
- Ice/snow
- Hailstones
- Vibration
- Expansion/Contraction
Environment Control
Master Flash provides a permanent seal that controls gaseous or liquid environments to eliminate leakage and odour contamination.
Corrosion-Resistant Base
Master Flash base is made of heavy-duty aluminum alloy for flexibility and corrosion resistance.
Roof Pitch-Adaptability
The stepped-cone design makes Master Flash easily adaptable to most roof pitches.
APPLICATIONS:
- Plumbing, heating/air conditioning vents and equipment
- Electrical service entrances
- Solar collection pipes
- Grain augers
- TV aerials
- Masts, vents, or pipes through decks or bulkheads
- Lighting conductors
- Pest control
- Air conditioning duct work

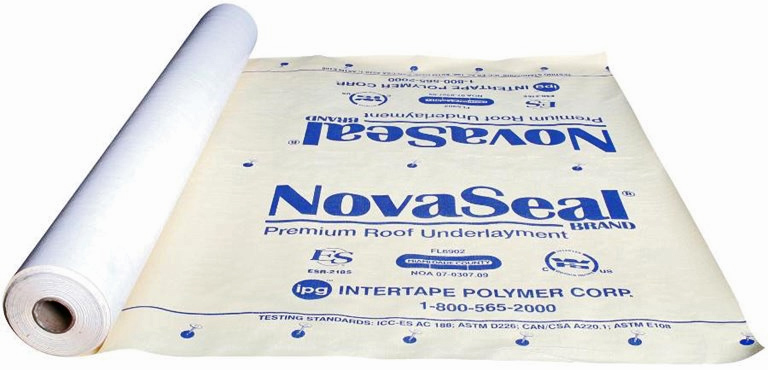

NovaSeal® Premium Roofing Underlayment
IPG NovaSeal® Premium is a superior two-side coated roofing underlayment featuring a patented, textured anti-slip surface. It is 5x lighter and 20x stronger than organic oil saturated felts. Limited Lifetime Warranty – 12 months of direct UV resistance
Building Codes:
- Miami-Dade County Product Control Approved NOA 16-1121.06 exp. February 2, 2022
- Florida Building Code FL6902
- Meets the requirements of CAN/CSA A220.1
- ICC-ES, AC 188 “Acceptance Criteria for Roof Underlayments.” ESR – 2185
